TP-QR┃13-3/8”～20”

Taper=1:12
Lead=3T.P.I

 Vertical torque shoulder

■3T.P.I coarse thread enable fast make-up without cross-thread

■Torque shoulder provides accurate power-tight make-up

■Internal flush









Description

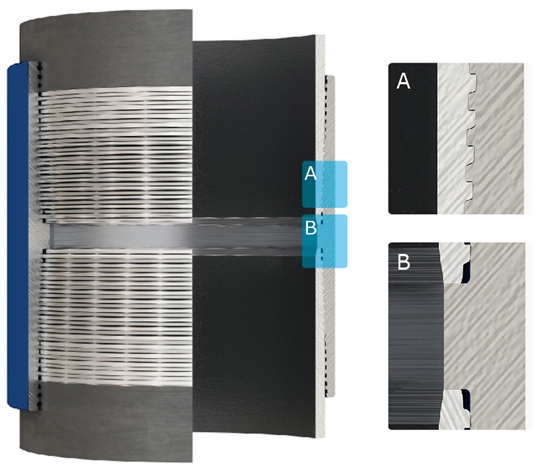

Threaded Connection
Coarse thread form with a taper of 1:12 and a lead of 3T.P.I, enables high connection strength, fast and easy running without cross-threading.

Torque Shoulder
The torque shoulder provides accurate power tight make-up, which also enables connection to withstand higher compression load.

Internal Profile
The streamlined internal profile minimizes turbulence and energy loss due to high-velocity gas flows.

Coupling Design
Because the coupling covers the vanishing threads therefore the connection tensile efficiency is maximized.

Low Stress Design
The lower stress design makes the connections reliable in corrosive condition.

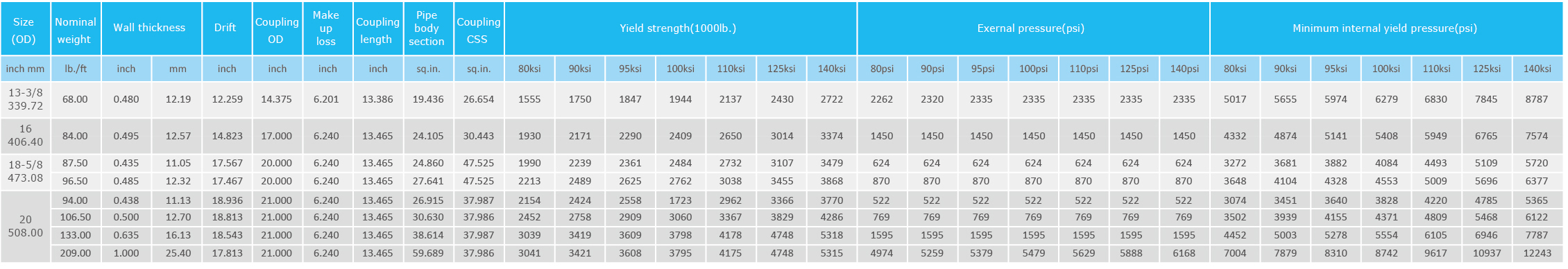

TP-QR┃T&C┃13-3/8”~20”
