TP-G2┃2-3/8”～20”









Hooked Thread
TBG: 2-3/8in~2-7/8in：8T.P.I.
         3-1/2in~4-1/2in：6T.P.I.
CSG: 5in~8-5/8in：5T.P.I.
         9-5/8in~20in：4T.P.I.



 Large angle Metal-to-Metal seal
Reverse angel torque shoulder
Internal flush











Gas-tight premium connection for the deep, high deviated and horizontal well

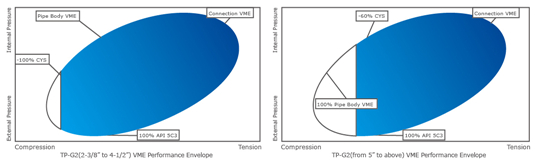

ISO 13679 CAL IV approved



■Excellent resistance to bending, compression and torque

■Superior anti-galling performance

■Reliable gas-tight sealing under any kind of combined loads

■Especially suitable for highly deviated and long horizontal wells

 ■Suitable for high alloy & carbon steel pipes



Description

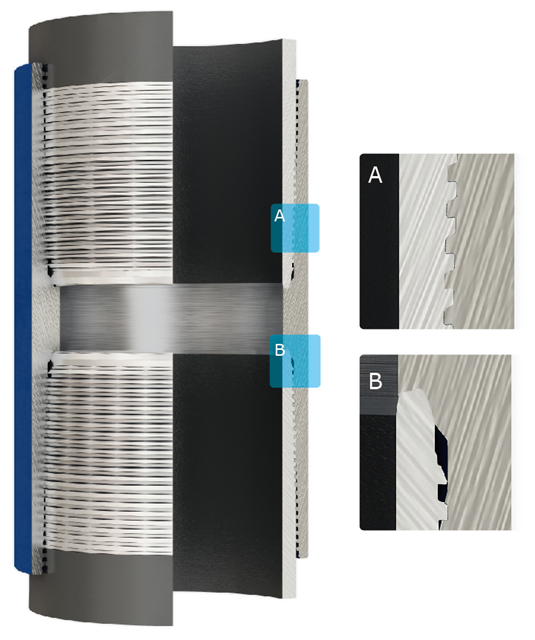

Threaded Connection
A modified hook thread profile with 4° reverse angle on the load flank, not only provide the connection with superior tension strength but also increase its resistance to compression. The excellent structural strength including increased bending and compression resistance, it makes this connection especially suitable for highly deviated and long horizontal wells. Optimized thread geometry will minimizes the risk of galling, even when thread compounds are poorly applied.

Metal-to-Metal Seal
Large angle metal-to-metal seal system offers excellent gas-tight sealing, even under the most severe combined loads. The seal integrity remains constant after repeated make-ups and break-outs.

Reverse Angle Torque Shoulder
A reverse angle torque shoulder provides a positive torque stop which allows for accurate power-tight make-up and minimizes hoop stresses in the connection. The "wedge" effect caused by the reverse angle gives the connection superior structural strength. The shoulder design is optimized in order to resist adverse conditions such as combined compression and external pressure or combined bending, compression and torque.

Streamlined Internal Profile
A pin ID chamfer, tight tolerances on the coupling center combined with a long shoulder will minimize turbulence and energy loss inside the connection for high-velocity gas flows.

Coupling Design
The 100% efficient connection performance has been engineered based on factors such as: the coverage of the vanishing threads, long internal shoulder, and coupling critical cross sections greater than those of the pipe body.

Connection Low Stress Design
Connection low stress design can ensure that it can be safe under the corrosive environment.

Options
TP-G2 HT     High torque
TP-G2 HC     High compression
TP-G2 (SB)   Special bevel
