Drill Pipe Stock

Manufacture specifications
API SPEC 5DP：Specification for Drill Pipe
ISO 11961：Petroleum and natural gas industries -Steel drill pipe
SY/T-5200：Drill stem subs
IRP VOLUME 1 : CRITICAL SOUR DRILLING

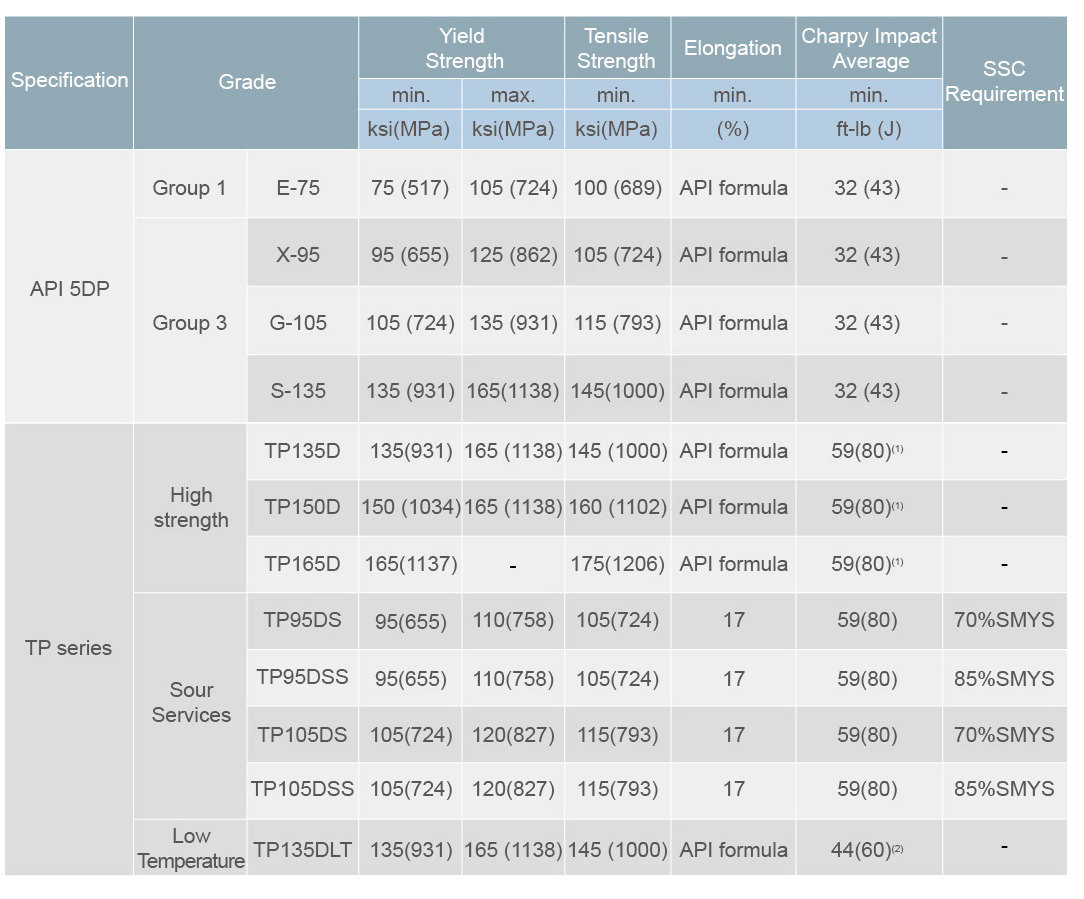

Mechanical properties

SMYS: Specified Minimum Yield Strength
SSC requirement: NACE test as per NACE TM0177 Method A Solution A
Charpy Impact Average: Minimum average Charpy Impact Value at room temperature, 3/4 standard size (7.5 X 10mm2)
(1)Minimum average Charpy Impact Value at –20°C, 3/4 standard size (7.5 X 10mm2)
(2)Minimum average Charpy Impact Value at –60°C, 3/4 standard size (7.5 X 10mm2)

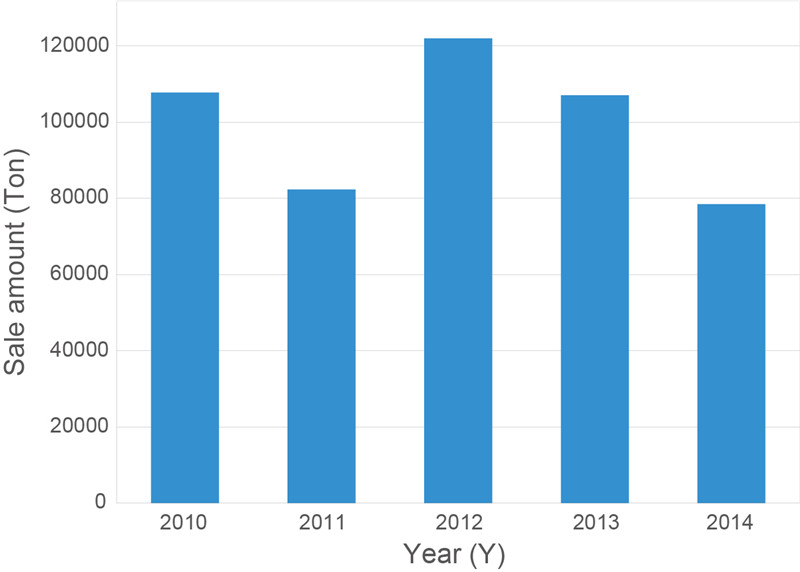

Quantity of supply

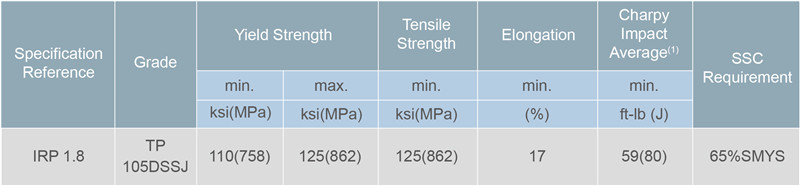

Heavy thickness pipe for sour service tool joint
TPCO has researched and offered heavy thickness pipe for sour service tool joint. Tool joint is essential to provide the necessary H2S resistance within the    steel and ensure the safety of those working in such harsh environments.
The heavy pipe is quenched and tempered, and has passed NACE test as per NACE TM0177 Method A Solution A. The product need to be machined to      tool joint by drill pipe manufacturers.

(1)Charpy Impact Average: Minimum average Charpy Impact Value at room temperature, standard size (10 X 10mm2)
